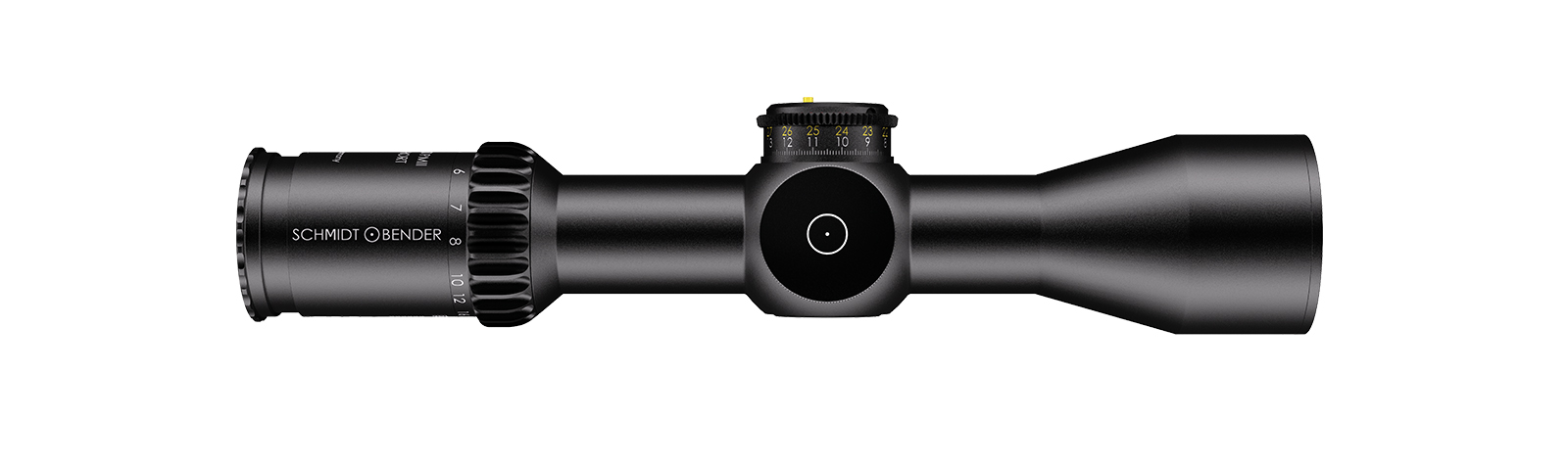

Schmidt Bender 5-20x50PM II Ultra Short TREMOR5 0,5 cm ccw MT II MTC

The 5-20×50 PM II Ultra Short represents Schmidt & Bender´s shortest full featured riflescope and is perfect for medium and long-range targets. Our newly designed illumination control is integrated into the parallax adjustment and allows a better mounting solution – also for left handed use. The redesigned magnification ring offers now more grip and can accommodate the Throw Lever. The low-profile elevation turret with 27 MRAD or large 35 MRAD adjustment range can easily be combined with a red dot sight for close distances. Compact rifles with limited rail space are especially predestined for this compact powerhouse. Although being short, lightweight and compact: this riflescope doesn’t compromise a millimeter on mechanical reliability or optical performance.

1. LPI (Illumination Parallax Integrated)

The 5-20×50 PM II Ultra Short now features our new “LPI” which stands for the German words “Leucht-Parallaxe-Integriert” and means „Illumination Parallax Integrated“. This new and very easily operable illumination control is integrated into the parallax adjustment and allows a better mounting solution. It also enables a better left handed use. Although being very compact the illumination and the parallax adjustment show the familiar features: on the outer side the smaller and easy to operate illumination knob has 11 functional steps with “off” positions between each step. The bigger knob which is next to the tube operates the very precise side focus/parallax adjustment. It begins at 25 m/27 yd for close distances and goes up to infinity. Both knobs are clearly distinguished by size and rippling while the engravings of each turret can be read or adjusted while in shooting position – also with gloves.

2. Magnification Ring

The newly designed magnification ring which enables a better grip and can also accommodate due to its deep grooves our Throw Lever.

3. TREMOR5 Reticle

The 5-20×50 PM II Ultra Short is now available with the new TREMOR5 reticle.
