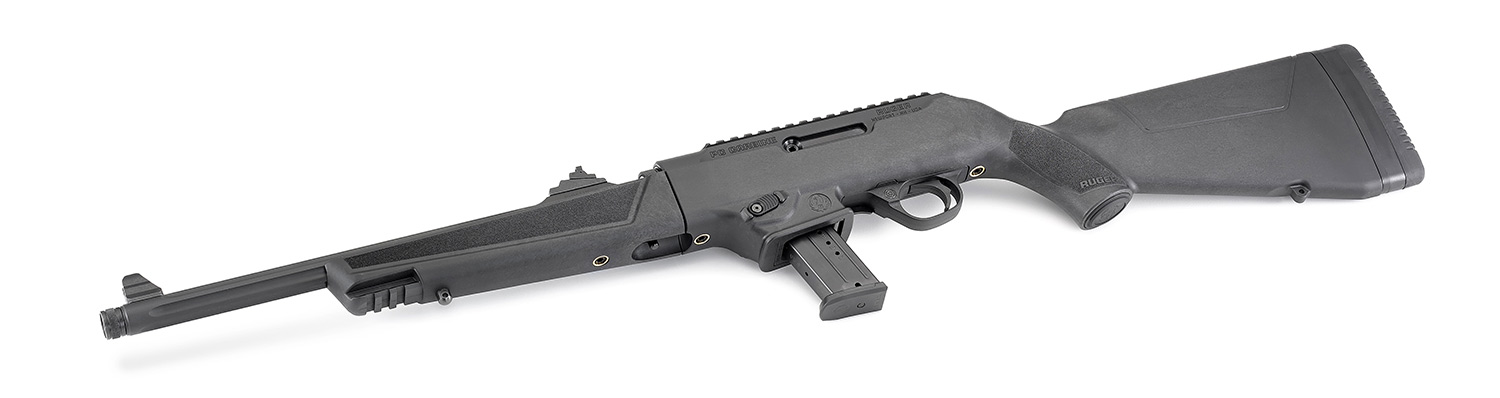

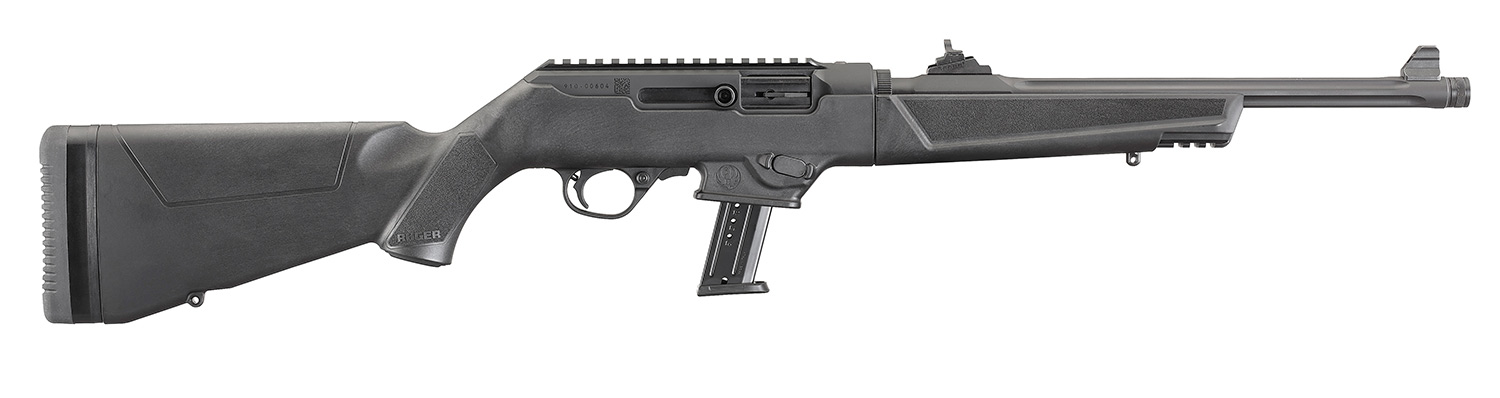

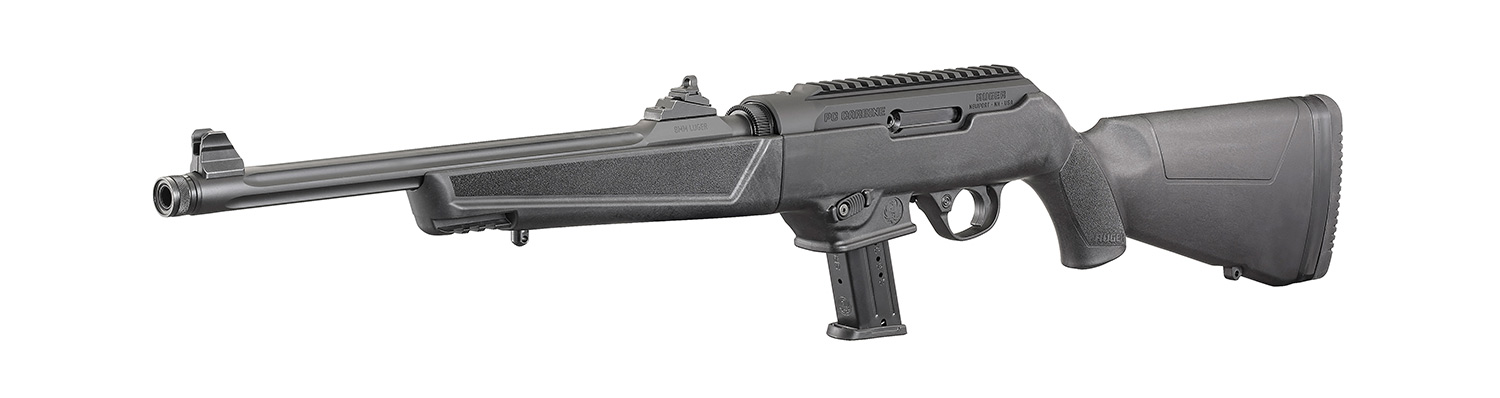

Ruger 9mm P PC Carbine

Introduction

• Easy takedown enables quick separation of the barrel/forend assembly from the action for ease of transportation and storage. Takedown is as simple as locking the bolt back and verifying that the rifle is unloaded, pushing a recessed lever, twisting the subassemblies and pulling them apart.
• Dead blow action features a custom tungsten dead blow weight that shortens bolt travel and reduces felt recoil and muzzle rise. Bolt is machined from heat treated, chrome-moly steel to ensure strength, structural integrity and durability.
• Reversible magazine release and reversible charging handle to support left- or right-handed use or one-handed control manipulation while maintaining a proper firing grip*.
• Cold hammer-forged, chrome-moly steel barrel with ultra-precise rifling provides exceptional accuracy and longevity. The heavy contour barrel provides consistent accuracy, while barrel fluting sheds unnecessary weight and allows for quick handling.
• Threaded barrel with included thread protector allows for use of standard muzzle accessories.
• Accurate sighting system with adjustable ghost ring rear aperture sight and non-glare, protected blade front sight.
• Soft rubber buttpad with spacers allows the rifle to be properly sized for different shooters or varying levels of outerwear or defensive gear (three, 1/2″ spacers included).
• Durable, glass-filled nylon synthetic buttstock features a proprietary texture for enhanced control and an integral sling mount for rapid sling attachment .
• Light, crisp trigger pull with minimal overtravel and positive reset utilizing proven 10/22® trigger components.
• CNC-machined from an aerospace-grade 7075-T6 aluminum billet, the receiver includes an integrated Picatinny-style rail and is Type III hard-coat anodized for maximum durability.
• Also includes: one, SR-Series™ or Security-9® pistol magazine and hex wrenches for rear sight adjustment, buttpad spacer adjustment and charging handle removal.

Specifications

Stock: Black Synthetic
Capacity: 17
Barrel Length: 16.12″
Overall Length: 34.37″
Front Sight: Protected Blade
Rear Sight: Adjustable Ghost Ring
Barrel Feature: Threaded, Fluted
Thread Pattern: 1/2″-28
Weight: 6.8 lb.
Length of Pull: 12.62″ – 14.12″
Receiver Material: Aluminium Alloy
Receiver Finish: Type III Hard-Coat Anodized
Twist: 1:10″ RH
Grooves: 6

Note

Older Glock® magazines that feature only one magazine latch slot may still be used with the PC Carbine™, but the magazine release button must remain on the left side of the rifle as shipped from the factory. The magazine release button should not be reversed when using this type of magazine as the magazine will not properly lock into the magazine well. Early versions of Glock®-brand magazines with a “U” shaped notch at the rear of the magazine feed lips will not function in the PC Carbine™

The receiver-mounted, Picatinny-style rail is designed to accommodate most optics and optic mounts intended for use with Picatinny/ MIL-STD 1913 rails. However, due to reduced clearance between the top of the receiver and the bottom of the optics rail, optics and optic mounts that extend more than .275″ below the top of the rail may not fit the PC Carbine™. Ensure that the optic or optic mount you intend to use does not extend more than .275″ below the top of the Picatinny-style rail when installed.
